Product Details

A1006 Series Screen Cables

Product Details

The A1006 Series Screen Cables are produced by a professional manufacturer and can be customized in terms of colors and designs.

1、Basic Product Specifications

Wire types within the 28 - 36AWG range are available for selection, and customization is supported. The default plastic housing is A1006, and technical support for adaptation will be provided when replacing it with other brands. The dimensions are produced according to customers' requirements.

2、Materials and Process

The materials meet ROHS and UL standards, ensuring stable performance. The manufacturing process includes machine wire stripping, precise terminal crimping, and manual plastic housing installation and welding to ensure product quality.

3、Application Fields and Services

They are applicable to consumer electronics fields such as displays and cameras. The delivery date is determined through negotiation. The packaging is usually bundled with cable ties and wrapped with bubble paper, and customized packaging is also available. Transportation options include international express, sea freight, and air freight, and the minimum order quantity is negotiated according to customization.

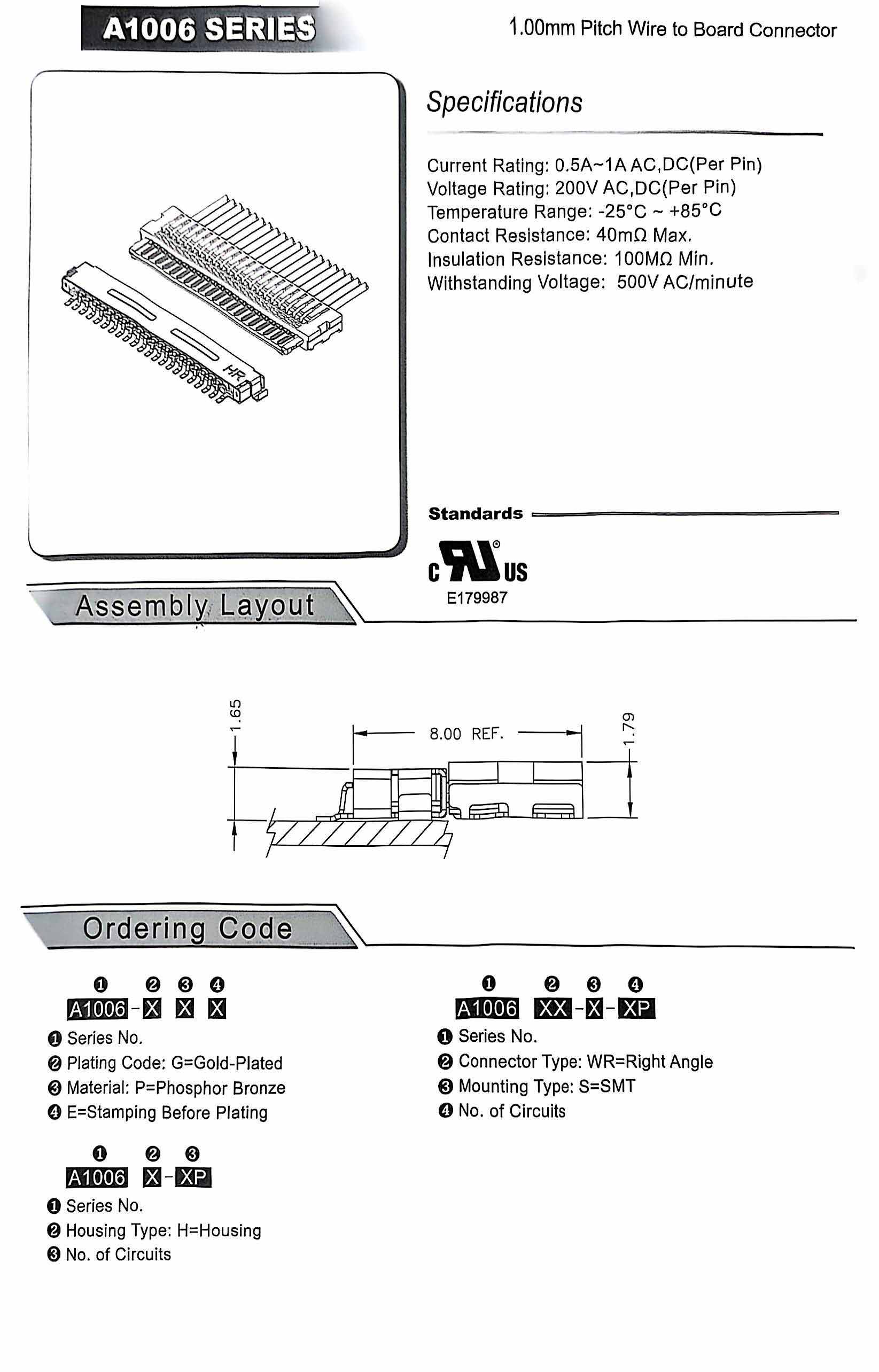

4、Specifications A1006 Housing

CurrentRating:0.5A~1AAC,DC（PerPin）

VoltageRating:200V AC,DC（PerPin）

TemperatureRange:-25°C~+85°C

ContactResistance:40m Ω Max.

InsulationResistance:100M Ω Min.

WithstandingVoltage:500V AC/minute

A1006 Series Screen Cables

Hot Tags : Wire-to-Board Connector A1006 Series Connector A1006 Series Screen Cables
