JST XSR-36S Neckband Headphone Cable

JST XSR-36S Neckband Headphone Cable

Product Details

The JST XSR-36S Neckband Headphone Cable is produced by a professional factory with OEM and ODM capabilities. Product colors and designs can be customized according to customer preferences.

1.Basic Product Specifications

• Wire Type: The standard wire type is 36AWG, and customization of special wire types is also supported. The customization process strictly adheres to electrical standards and undergoes comprehensive professional testing. This ensures that the product can meet various electrical performance requirements and operate stably in complex electrical environments.
• Plastic Housing: The default plastic housing is JST XSR - 36S. If customers want to use plastic housings from other brands, we will provide professional adaptation technical support. This ensures a perfect combination of the new plastic housing with the product and guarantees stable and reliable connections.
• Dimensions: The product is precisely manufactured according to the dimensions specified by customers. High-precision equipment and advanced manufacturing processes are used, and strict quality inspections are carried out to ensure a perfect fit with the target equipment.

2.Materials and Process

• Materials: All materials used meet ROHS environmental protection standards and UL safety standards, ensuring product quality from the source. These materials have excellent insulation, conductivity, and stability, enabling the product to operate reliably under different environmental conditions.
• Process: The production process begins with precise wire stripping by machine to ensure the quality of the wire. Then, the terminals are accurately crimped to establish reliable electrical connections. Finally, the plastic housing is manually installed and welded. Each step of the production process is strictly quality-controlled to ensure stable and reliable product performance.

3.Wide Range of Applications

In displays, it ensures the smooth transmission of image signals. For cameras, it enables accurate data transmission. In sensor applications, it provides a stable connection for reliable data transmission. In the industrial equipment field, it can adapt to complex environments and maintain the stable operation of equipment, providing reliable connection support for various devices.

4.Comprehensive Service Support

The delivery date of customized products is determined through negotiation to match the customer's project schedule. The standard packaging method is to bundle with cable ties and then wrap with bubble paper, but customized packaging solutions are also available upon request. Transportation methods include international express, sea freight, and air freight, and customers can choose according to their own needs. The minimum order quantity is negotiated according to product customization requirements, providing flexible cooperation options.

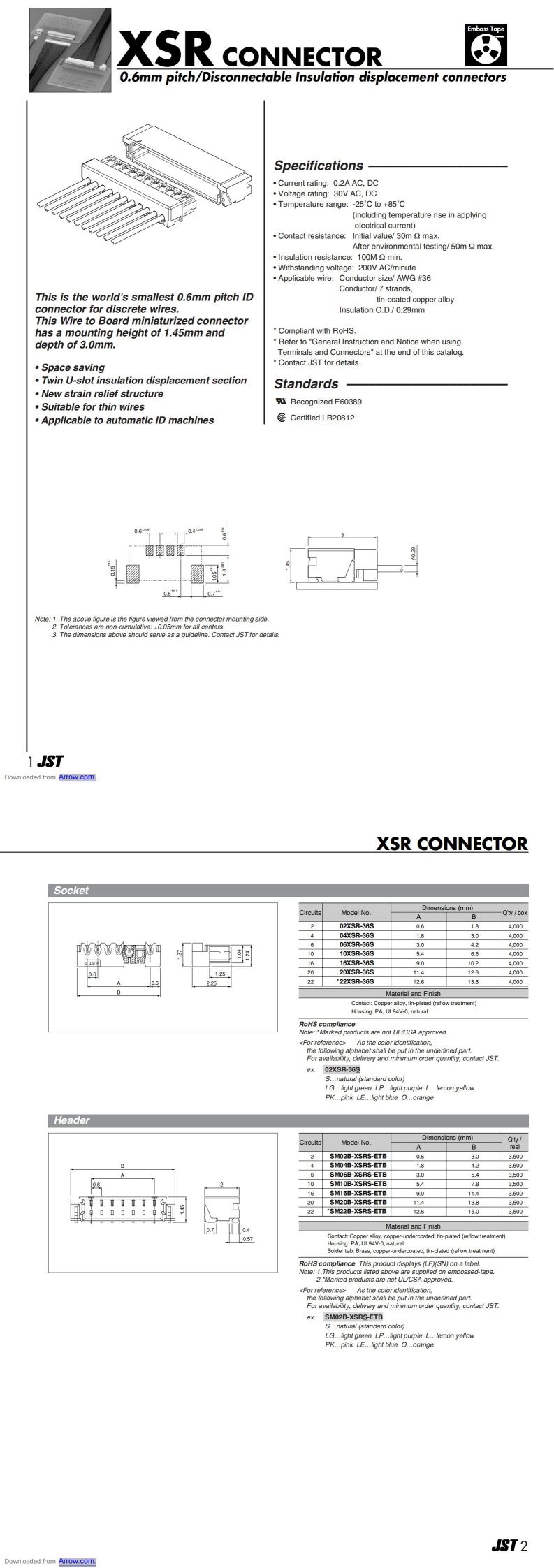

5.Specifications JST-XSR-36S Housing

Current rating: 0.2A AC, DC

Voltage rating: 30V AC, DC

Temperature range: -25'C to +85C

(including temperature rise in applying electrical current)

Contact resistance:Initial value/ 30m Ω max.

                               After environmental testing/ 50m 2 max.

Insulation resistance: 100M Ω min.

Withstanding voltage: 200V AC/minute

Applicable wire: Conductor size/ AWG #36

                          Conductor/7 strands.

                          tin-coated copper alloy

                          Insulation O.D./ 0.29mm
