OEM/ODM A2002 (PH2.0) Motor Connecting Cable,A2002 (PH2.0) Motor Connecting Cable Factory Price

Product categories

New products

Product Details

A2002 (PH2.0) Motor Connecting Cable

Product Details

The A2002 (PH2.0) Motor Connecting Cable is manufactured by a professional manufacturer with OEM and ODM service capabilities, and can be customized in terms of colors and designs according to customers' requirements.

1、Basic Product Specifications

Wire Type: Options within the 24 - 30AWG range are available, and customization is also supported. Customizations adhere to electrical standards and undergo professional testing to ensure that different electrical performance requirements are met, such as current - carrying capacity and resistance requirements.
Plastic Housing: The default plastic housing is A2002 (PH2.0), and it can be replaced with plastic housings from other brands. When customers choose to replace the plastic housing, we provide technical support to ensure the new plastic housing is adaptable and the connection remains stable.
Dimensions: It is accurately produced according to customers' requirements. High - precision equipment and advanced processes are used, and strict inspections are carried out to ensure that the dimensions precisely match the equipment.
Materials: All materials meet ROHS and UL standards, guaranteeing product quality from the source and ensuring stable performance, safety, and non - toxicity.
Process: First, machine wire stripping is used to ensure the quality of the wire. Then, the terminals are precisely crimped, and finally, the plastic housing is installed and welded manually. Each step is strictly controlled to ensure the stable and reliable performance of the product.

2、Wide Range of Applications

It is widely applicable to motors, household appliances and other equipment, meeting connection requirements in different scenarios and providing reliable connection support for the stable operation of these devices.

3.Complete Service Guarantee

The delivery date of customized products is determined through negotiation to fully cooperate with the customer's project schedule.

The packaging usually adopts the method of bundling with cable ties and wrapping with bubble paper, and can also be customized according to customer requirements.

There are various transportation methods, including international express, sea freight, and air freight, and customers can choose according to their needs.

The minimum order quantity is negotiated according to the product customization situation, providing flexible cooperation plans.

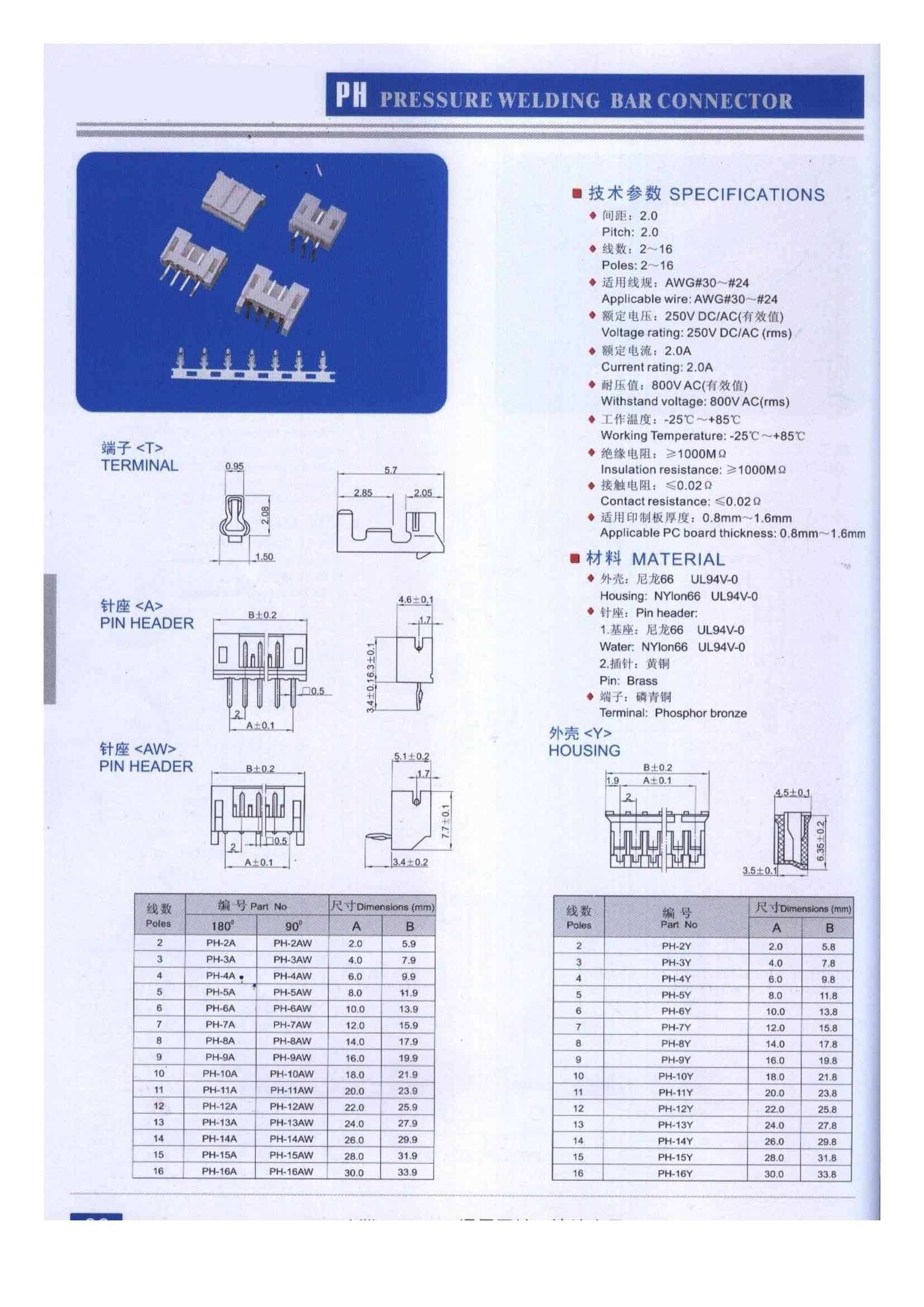

4、SPECIFICATIONS PH Housing

Pitch: 2.0

Poles:2-16

Applicable wire:AWG#30~#24

Voltage rating: 250v DC/AC (rms)

Current rating: 2.0A

Withstand voltage: 800VAC(rms)

Working Temperature:-25℃~+85℃

Insulation resistance: ≥1000MΩ

Contactresistance: ≤0.02Ω

Applicable PC board thickness: 0.8mm~1.6mm

A2002 (PH2.0) Motor Connecting Cable

Hot Tags : Motor Connecting Cable wire-to-board connecting cable A2002 (PH2.0) Motor Connecting Cable Electronic device wire connectors Customizable wire-to-board connections
