A2003 (SAN.JC20) Wire For Internal Use Of Electrical Appliances

A2003 (SAN.JC20) Wire For Internal Use Of Electrical Appliances is crafted from top - grade, environmentally friendly materials that fully comply with both ROHS and UL standards. This guarantees not only the safety of use but also outstanding reliability over time.

In terms of customization, we offer a wide array of wire types within the 24 - 28AWG range. Additionally, if you prefer, the plastic housing can be swapped out with options from other renowned brands. We'll provide comprehensive technical support to ensure seamless compatibility. The minimum order quantity is flexible and will be determined through in - depth discussions based on your specific needs.

This wire is highly suitable for household appliances such as TVs and hair dryers. It has been rigorously tested to ensure stable transmission of both current and signals, making it a reliable choice for your electrical projects.

Inquiry Now

Product categories

New products

Product Details

A2003 (SAN.JC20) Wire For Internal Use Of Electrical Appliances

Product Details

The A2003 (SAN.JC20) Wire For Internal Use Of Electrical Appliances is manufactured by a professional manufacturer and can be customized in terms of colors and designs.

1、Basic Product Specifications

Wire Type: Options within the 24 - 28AWG range are available, and customized wire types comply with electrical standards and undergo testing.
Plastic Housing: The default plastic housing is A2003 (SAN.JC20), and it can be replaced with plastic housings from other brands. Technical support for adaptation is provided.
Dimensions: Produced according to customers' requirements to ensure precise dimensions.
Materials: Meeting ROHS and UL standards, the materials offer stable performance.
Process: Machine wire stripping, precise terminal crimping, and manual plastic housing installation and welding are used to ensure quality.

2、Wide Range of Applications

It is highly suitable for a wide variety of household appliances, such as refrigerators, washing machines, microwaves, and electric fans. It effectively meets the internal wiring connection requirements of these appliances.

3、Complete Service Guarantee

The delivery date is determined through negotiation. The packaging is usually bundled with cable ties and wrapped with bubble paper, and can also be customized. Transportation options include international express, sea freight, and air freight. The minimum order quantity is negotiated according to customization.

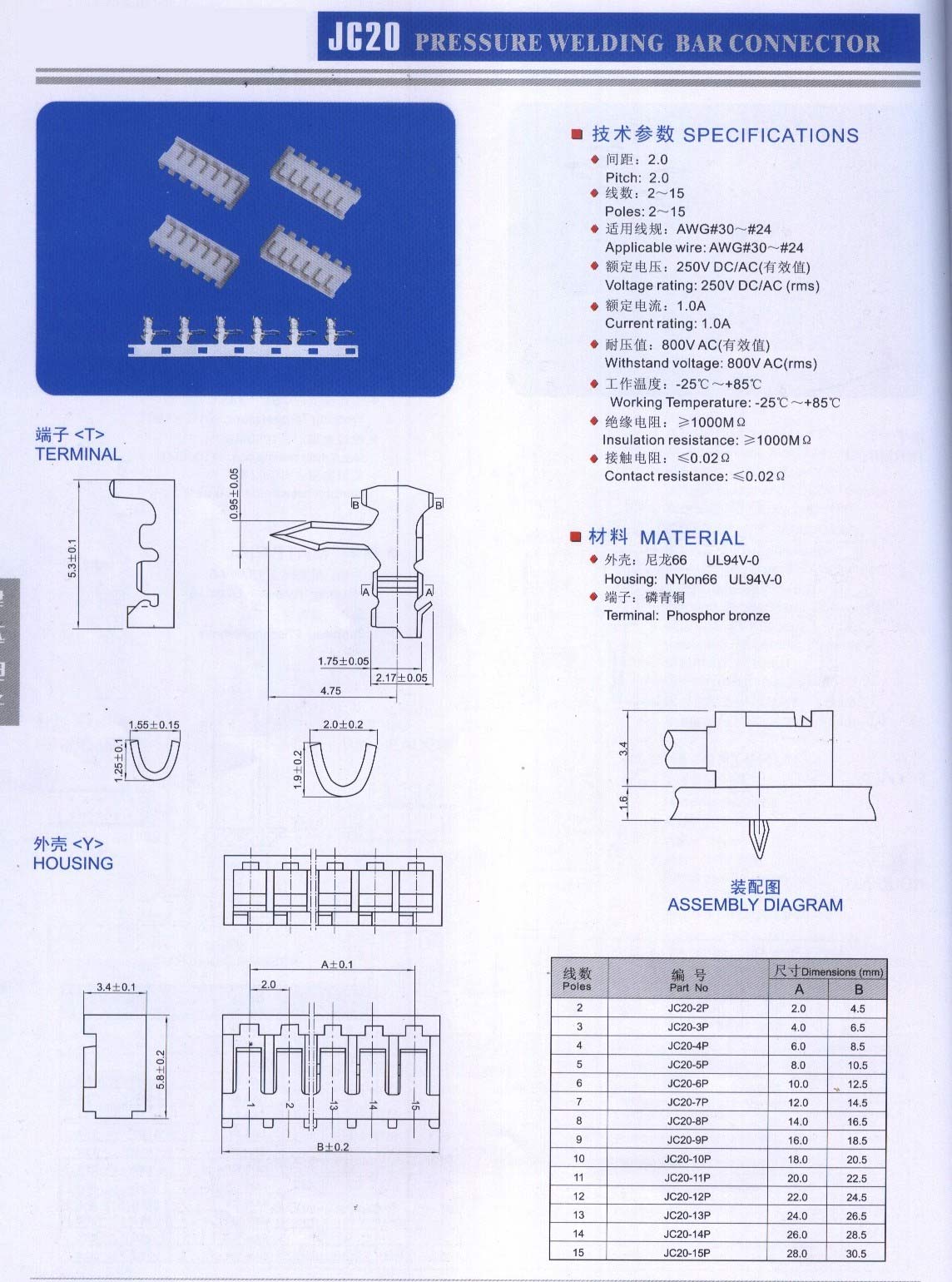

4、SPECIFICATIONS JC20 Housing

Pitch:2.0

Poles:2~15

Applicable wire:AWG#30-#24

Voltage rating:250V DC/AC (rms)

Current rating: 1.0A

Withstand voltage: 800V AC(rms)

Working Temperature:-25'C~+850

Insulation resistance:≥1000MΩ

Contact resistance:≤0.02 Ω

Wire for Internal Use of Electrical Appliances

Hot Tags : Wire for Internal Use of Electrical Appliances wire-to-board connecting wire A2003 (SAN.JC20) Wire for Internal Use of Electrical Appliances
