Product Details

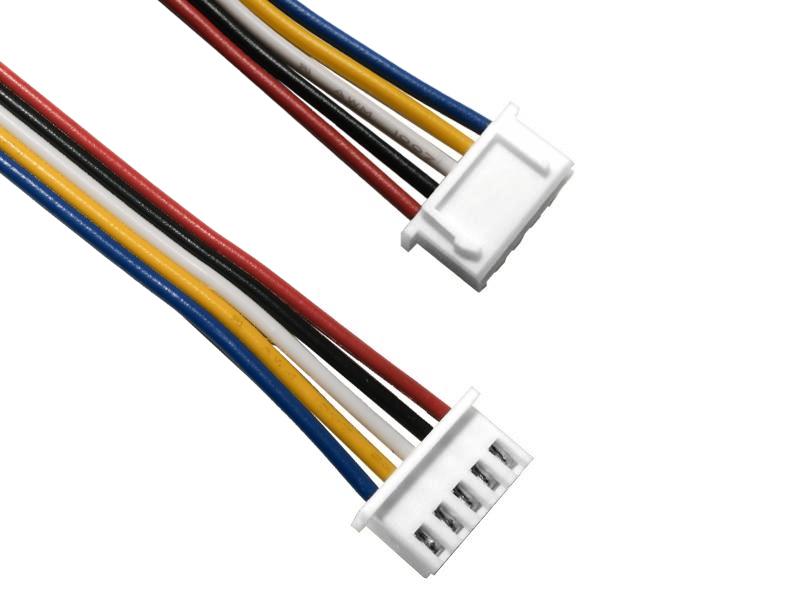

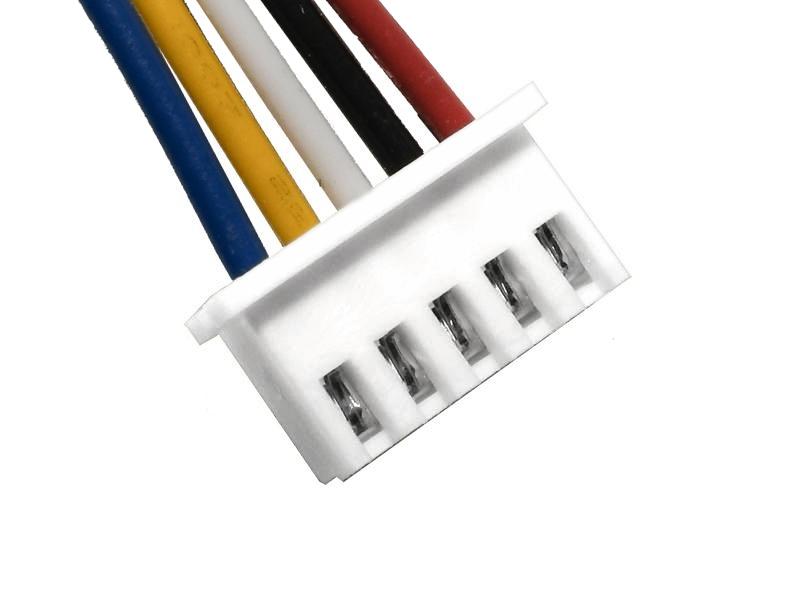

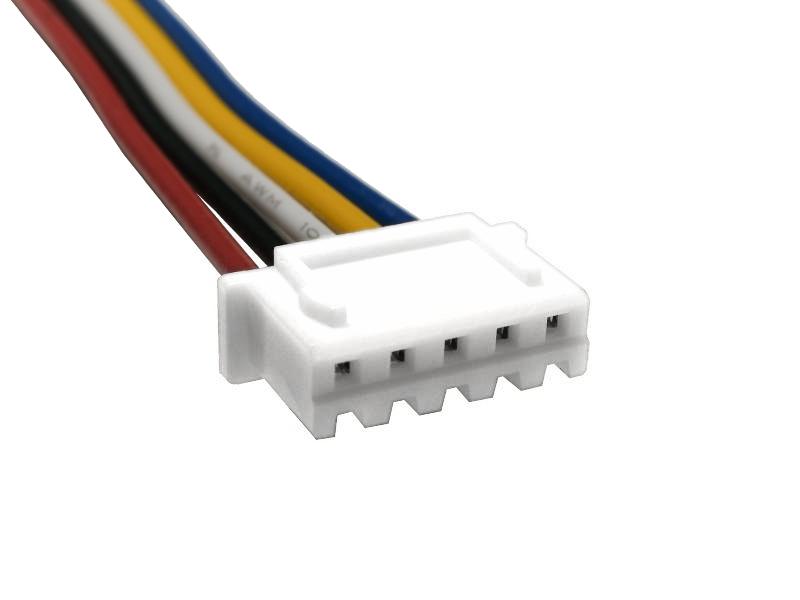

A2501 (XH2.5) DC Motor Connecting Cable

Product Details

The A2501 (XH2.5) DC Motor Connecting Cable is meticulously manufactured by a professional manufacturer with OEM and ODM service capabilities. It can be customized in terms of colors and designs according to customers' requirements.

1、Basic Product Specifications

Wire Type: Options within the 22 - 30AWG range are available, and customization is also supported. The customization process strictly adheres to electrical standards and undergoes professional testing to ensure that different electrical performance requirements are met, such as current - carrying capacity and resistance requirements.
Plastic Housing: The default plastic housing is XH2.5, and it can be replaced with plastic housings from other brands. When customers choose to replace the plastic housing, we provide professional technical support to ensure that the new plastic housing is compatible with the entire product, guaranteeing a stable and reliable connection.
Dimensions: It is accurately produced according to customers' requirements. High - precision equipment and advanced processes are used, and strict inspections are carried out to ensure that the dimensions precisely match the equipment.
Materials: All materials meet ROHS environmental protection standards and UL standards, guaranteeing product quality from the source and ensuring stable performance, safety, and non - toxicity.
Process: First, machine wire stripping is used to ensure the quality of the wire. Then, the terminals are precisely crimped, and finally, the plastic housing is installed and welded manually. Each step is strictly controlled to ensure the stable and reliable performance of the product.

2、Wide Range of Applications

It is specially designed for DC motors and is also suitable for devices such as controllers and drivers that work in conjunction with DC motors, as well as other industrial equipment with high requirements for the stability of current and signal transmission. It meets the connection needs between different devices and provides reliable connection support for the stable operation of the entire system.

The delivery date of customized products is determined through negotiation to fully cooperate with the customer's project schedule.

The packaging usually adopts the method of bundling with cable ties and wrapping with bubble paper, and can also be customized according to customer requirements.

There are various transportation methods, including international express, sea freight, and air freight, and customers can choose according to their needs.

The minimum order quantity is negotiated according to the product customization situation, providing flexible cooperation plans.

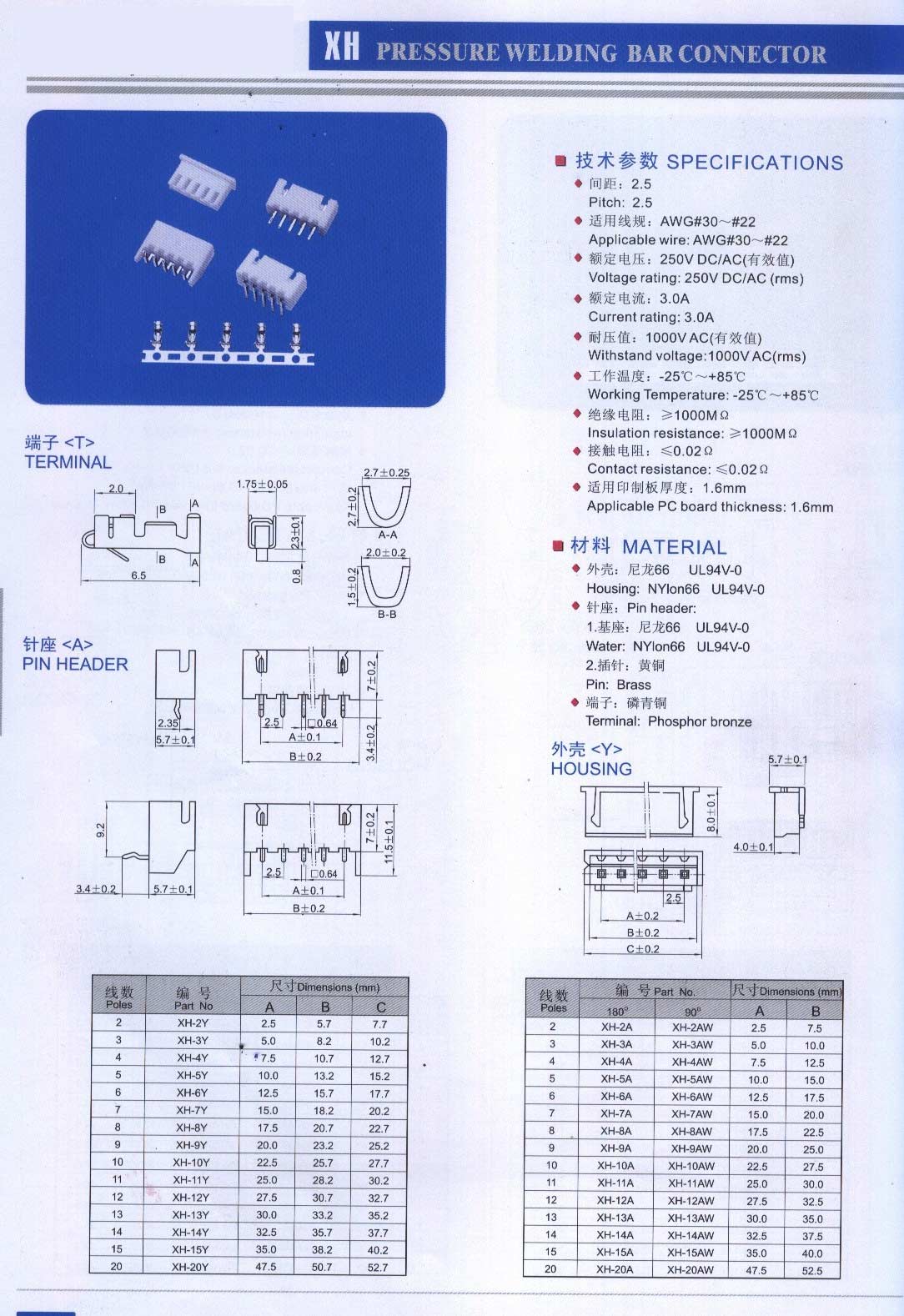

3、SPECIFICATIONS XH Housing

Pitch:2.5

Applicable wire:AWG#30-#22

Voltage rating:250V DC/AC (rms)

Current rating: 3.0A

Withstand voltage: 1000V AC(rms)

Working Temperature:-25'C~+85'C

Insulation resistance:≥1000MΩ

Contact resistance:≤0.02Ω

A2501 (XH2.5) DC motor connecting cable
