A2504(JC25) PCB Wire-To-Board Connecting Wire

Product Details

The A2504(JC25) PCB Wire-To-Board Connecting Wire is manufactured by a professional manufacturer and can be customized in terms of colors and designs.

1、Basic Product Specifications

Wire types within the 22 - 30AWG range are available for selection and customization. The default plastic housing is JC25 , and technical support is provided when replacing it with other brands. The dimensions are produced according to customers' requirements.

2、Materials and Process

The materials meet the standards. The housing is made of nylon 66 UL94V - 0, and the terminals are made of phosphor bronze. The manufacturing process, including machine wire stripping, precise terminal crimping, and manual plastic housing installation and welding, ensures product quality.

3、Applications and Services

It is suitable for devices such as displays. The delivery date is subject to negotiation. The packaging is usually bundled with cable ties and wrapped with bubble paper, and customized packaging is also available. Transportation options include international express, sea freight, and air freight, and the minimum order quantity is negotiated according to customization.

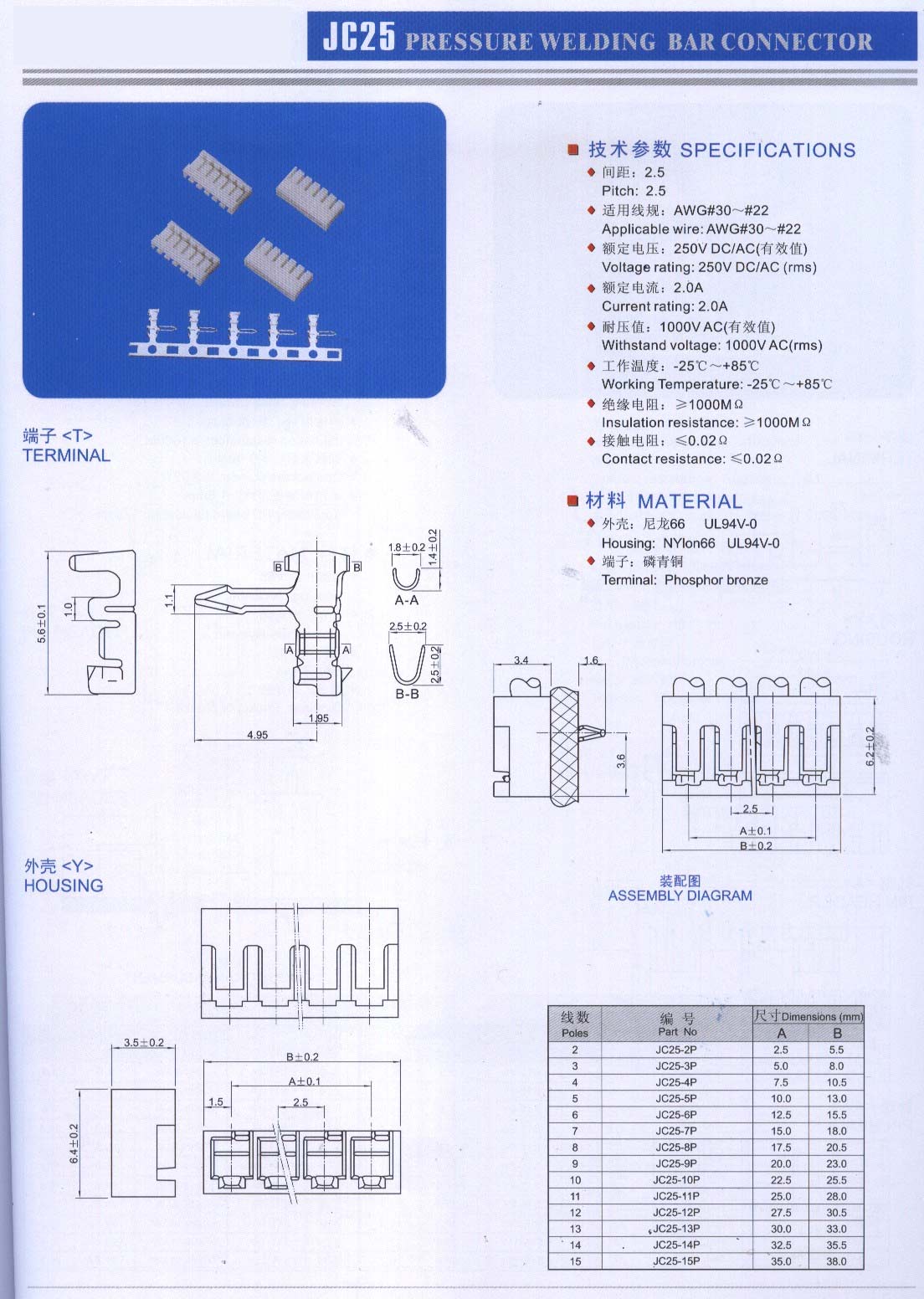

4、SPECIFICATIONS JC25 Housing

Pitch: 2.5

Applicable wire:AWG#30~#22

Voltage rating: 250V DC/AC(rms)

Current rating: 2.0A

Withstand voltage:1000VAC(rms)

Working Temperature:-25℃~+85C

Insulation resistance:≥1000MΩ

Contact resistance:≤0.02 Ω

wire-to-board connecting wire
