OEM/ODM A2505 (SCN) Battery Connecting Cable,A2505 (SCN) Battery Connecting Cable Factory Price

Product categories

New products

Product Details

A2505 (SCN) Battery Connecting Cable

Product Details

The A2505 (SCN) Battery Connecting Cable is manufactured by a professional manufacturer and can be customized in terms of colors and designs.

1、Basic Product Specifications

Wire types within the 22 - 28AWG range are available for selection, and customization is supported. The default plastic housing is SCN. When replacing it with other brands, technical support for adaptation is provided, and the dimensions are produced according to customers' requirements.

2、Materials and Process

The materials meet relevant standards, ensuring stable performance. The cable is produced through machine wire stripping, precise terminal crimping, and then manual plastic housing installation and welding to guarantee quality.

3.Applications and Services

Specifically tailored for household electrical appliances powered by batteries (such as portable vacuum cleaners, power tools, etc.) and light strip products (such as decorative light strips, cabinet light strips, etc.), it can meet the diverse connection needs of different household electrical appliances.
Delivery Date: Determined through in-depth negotiation with customers, fully considering the customer's production plan to ensure on-time delivery and assist the smooth progress of the customer's project.
Packaging Method: The conventional packaging method is double protection of bundling with cable ties and wrapping with bubble paper, effectively protecting the product from damage during transportation. At the same time, customized packaging services can also be provided according to the customer's special requirements for product packaging.
Transportation Method: A variety of transportation methods, including international express, sea freight, and air freight, are provided. Customers can flexibly choose the most suitable transportation solution according to the urgency of the delivery time, transportation cost budget, and other actual needs.
Minimum Order Quantity: Determined through negotiation with customers according to factors such as the complexity of product customization and material costs, providing customers with flexible and personalized cooperation plans. Regardless of the order size, we can fully meet the customer's needs.

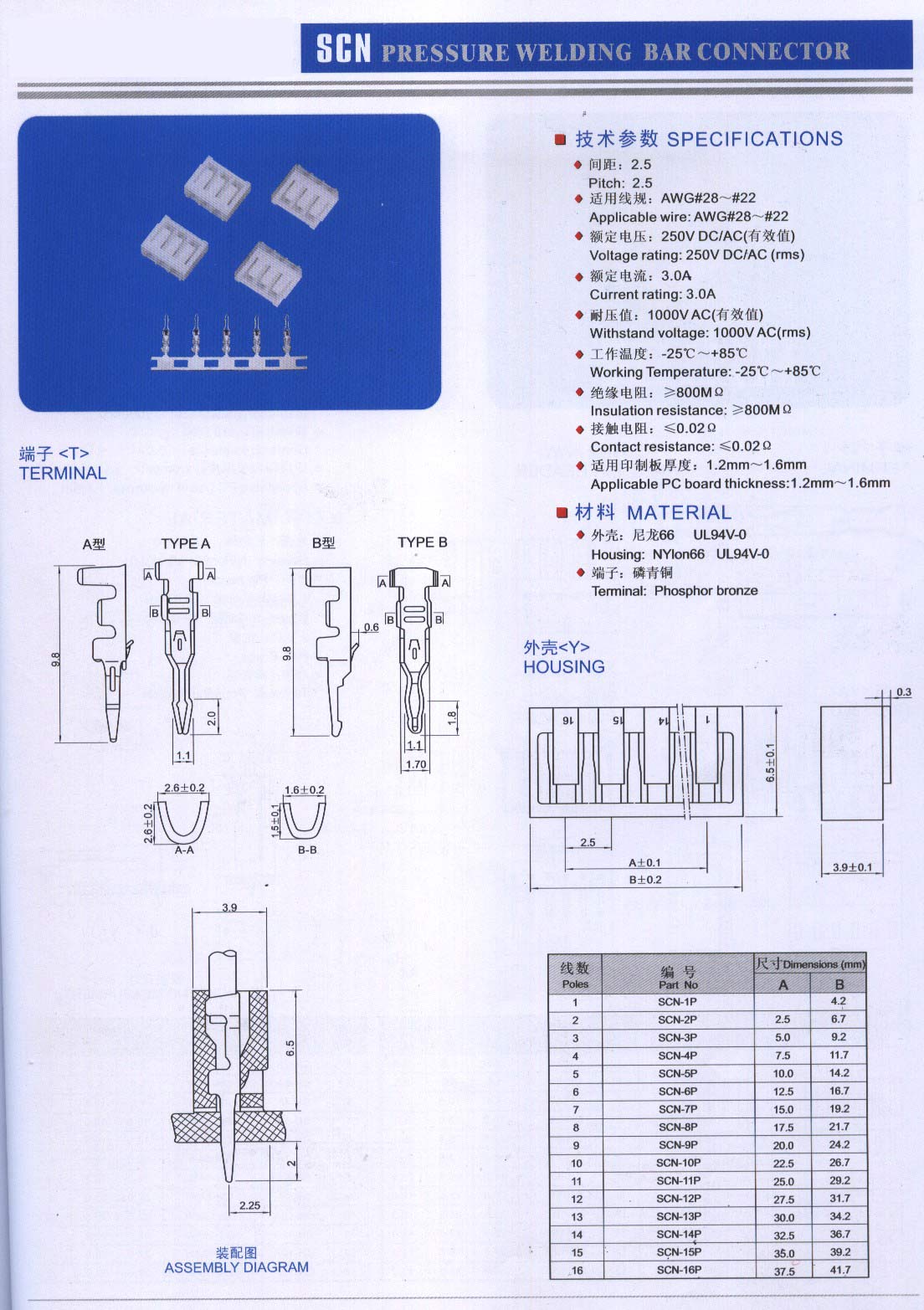

4、SPECIFICATIONS SCN Housing

Pitch:2.5

Applicable wire:AWG#28~#22

Voltage rating: 250V DC/AC (rms)

Current rating: 3.0A

Withstand voltage: 1000V AC(rms)

Working Temperature:-25℃~+85℃

Insulation resistance: ≥800M Ω

Contact resistance: ≤0.02 Ω

Applicable PC board thickness:1.2mm~1.6mm

A2505 (SCN) Battery Connecting Cable
