A2506 (SM) Optoelectronic Connecting Cable

The A2506 (SM) Optoelectronic Connecting Cable is crafted from environmentally friendly materials in compliance with ROHS and UL standards, ensuring top - notch quality and eco - friendliness.

It offers customization options for wire types within the 22 - 28AWG range, along with plastic housings. The minimum order quantity is negotiable, catering flexibly to diverse customer requirements.

This product is widely applicable across the optoelectronic industry, as well as in the realm of electronic appliances. It can stably transmit current and signals, guaranteeing a reliable connection for the smooth operation of various devices, whether they are sophisticated optoelectronic components like high - resolution optical sensors or common electronic appliances such as smart home devices. Its versatility makes it an ideal choice for different applications within these fields, providing a robust solution for ensuring seamless connectivity and efficient performance.

Inquiry Now

Product categories

New products

Product Details

A2506 (SM) Optoelectronic Connecting Cable

Product Details

The A2506 (SM) Optoelectronic Connecting Cable is manufactured by a professional manufacturer with strong OEM and ODM service capabilities. It can customize the product color and appearance design according to customer requirements.

1、Basic Product Specifications

Wire Type: Standard wire types within the 22 - 28AWG range are available for customers to choose from, and customization of special specifications is also supported. The customization process strictly adheres to electrical standards and undergoes professional testing to ensure that different electrical performance requirements are met and the product can operate stably in various complex electrical environments.
Plastic Housing: The default plastic housing is A2506(SM). If customers need to replace it with plastic housings of other brands, we will provide professional adaptation technical support to ensure stable and reliable connections.
Dimensions: The product is precisely manufactured according to customer requirements. High-precision equipment and advanced processes are used, and strict inspections are carried out to ensure that the dimensions are perfectly adapted to the equipment.

2、Materials and Process

Materials: All materials meet ROHS environmental protection standards and UL standards, ensuring product quality from the source and guaranteeing stable performance, safety, and non-toxicity.
Process: First, the wire is precisely stripped by machine to ensure the quality of the wire. Then, the terminals are precisely crimped, and finally, the plastic housing is installed and welded manually. Each link is strictly quality-controlled to ensure stable product performance.

3、Wide Range of Applications

This product is widely applicable in fields such as optoelectronics and electronic appliances. In the optoelectronics field, it can be used in various optical sensors, optical communication devices, etc., ensuring stable connections during the conversion between optical and electrical signals. In the field of electronic appliances, whether it is smart home products such as smart refrigerators and smart TVs, or various electronic devices such as laptops and tablets, it can meet the needs of internal circuit connections, laying a solid foundation for the stable operation of the devices.

4、Perfect Service Guarantee

The delivery date of customized products is determined through negotiation, fully cooperating with the customer's project schedule. The packaging usually adopts the method of bundling with cable ties and wrapping with bubble paper, and can also be customized according to customer requirements. There are various transportation methods, including international express, sea freight, and air freight, and customers can choose according to their needs. The minimum order quantity is negotiated according to the product customization situation, providing flexible cooperation plans.

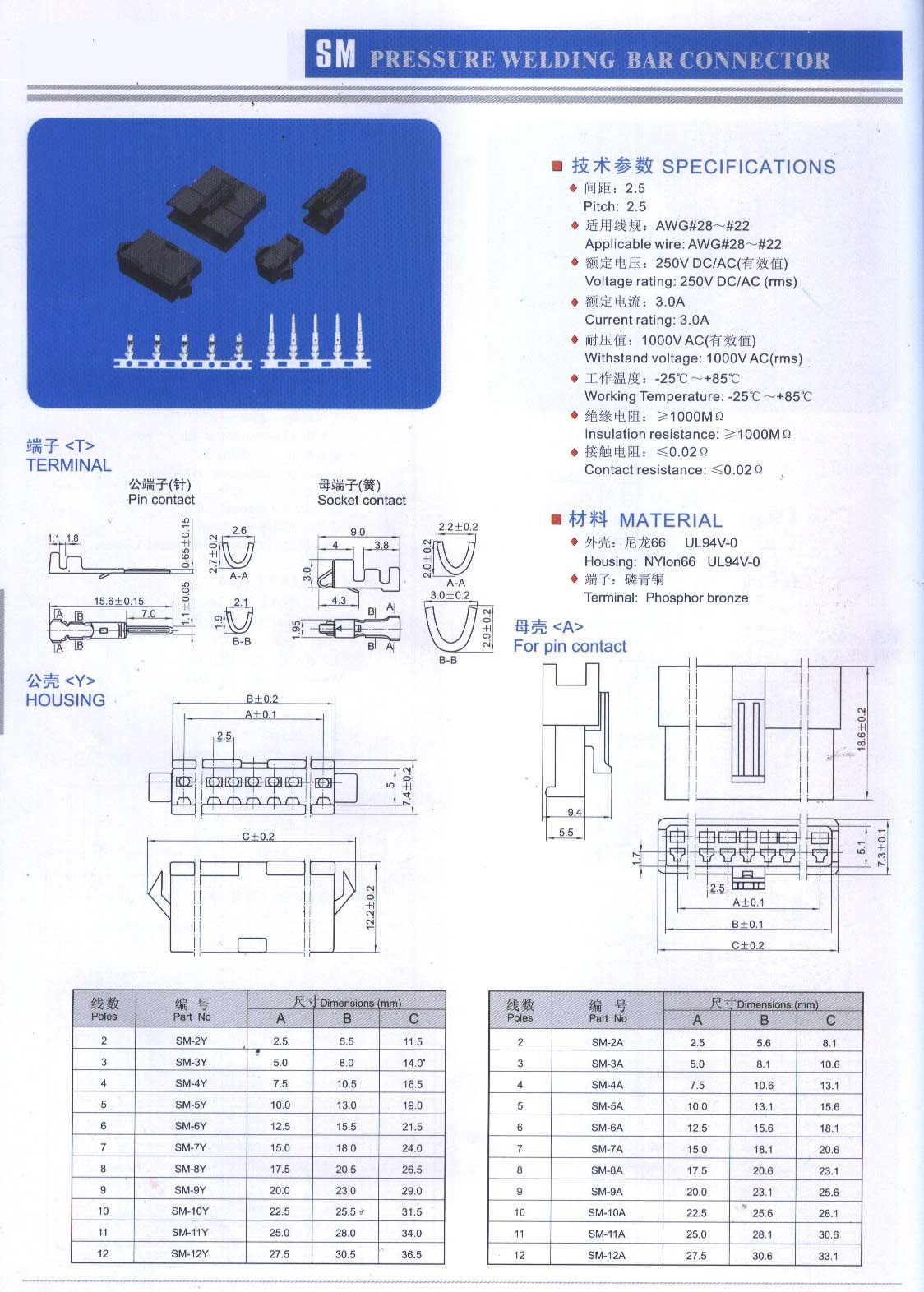

5、SPECIFICATIONS SM Housing

Pitch: 2.5

Applicable wire:AWG#28~#22

Voltage rating: 250V DC/AC (rms)

Current rating: 3.0A

Withstand voltage: 1000V AC(rms)

Working Temperature:-25℃~+85℃

Insulation resistance:≥1000MΩ

Contact resistance:≤0.02 Ω

A2506 (SM) Optoelectronic Connecting Cable

Hot Tags : Optoelectronic Connecting Cable Wire-to-Board Cable A2506 (SM) Optoelectronic Connecting Cable
