Product Details

A2543 Wire-to-board Connecting Cable

Product Details

The A2543(2510) wire-to-board connecting cable is manufactured by a professional manufacturer with OEM and ODM service capabilities, and it can be customized in terms of colors and designs.

1、Basic Product Specifications

Wire types within the 24 - 30AWG range are available, and custom special - specification wire types are also supported. The default plastic housing is A2543(2510). When replacing it with plastic housings of other brands, adaptation technical support is provided. The dimensions are produced according to customers' requirements.

2、Materials and Process

The materials meet relevant standards. The housing and socket are made of nylon 66 UL94V - 0, and the terminals are made of phosphor bronze. The production process includes machine wire stripping, precise terminal crimping, and manual plastic housing installation and welding, with strict quality control.

3、Applications and Services

It is suitable for various devices. The delivery date is determined through negotiation. The conventional packaging is bundling with cable ties and wrapping with bubble paper, and customized packaging is also available. Transportation options include international express, sea freight, and air freight, and the minimum order quantity is negotiated according to customization.

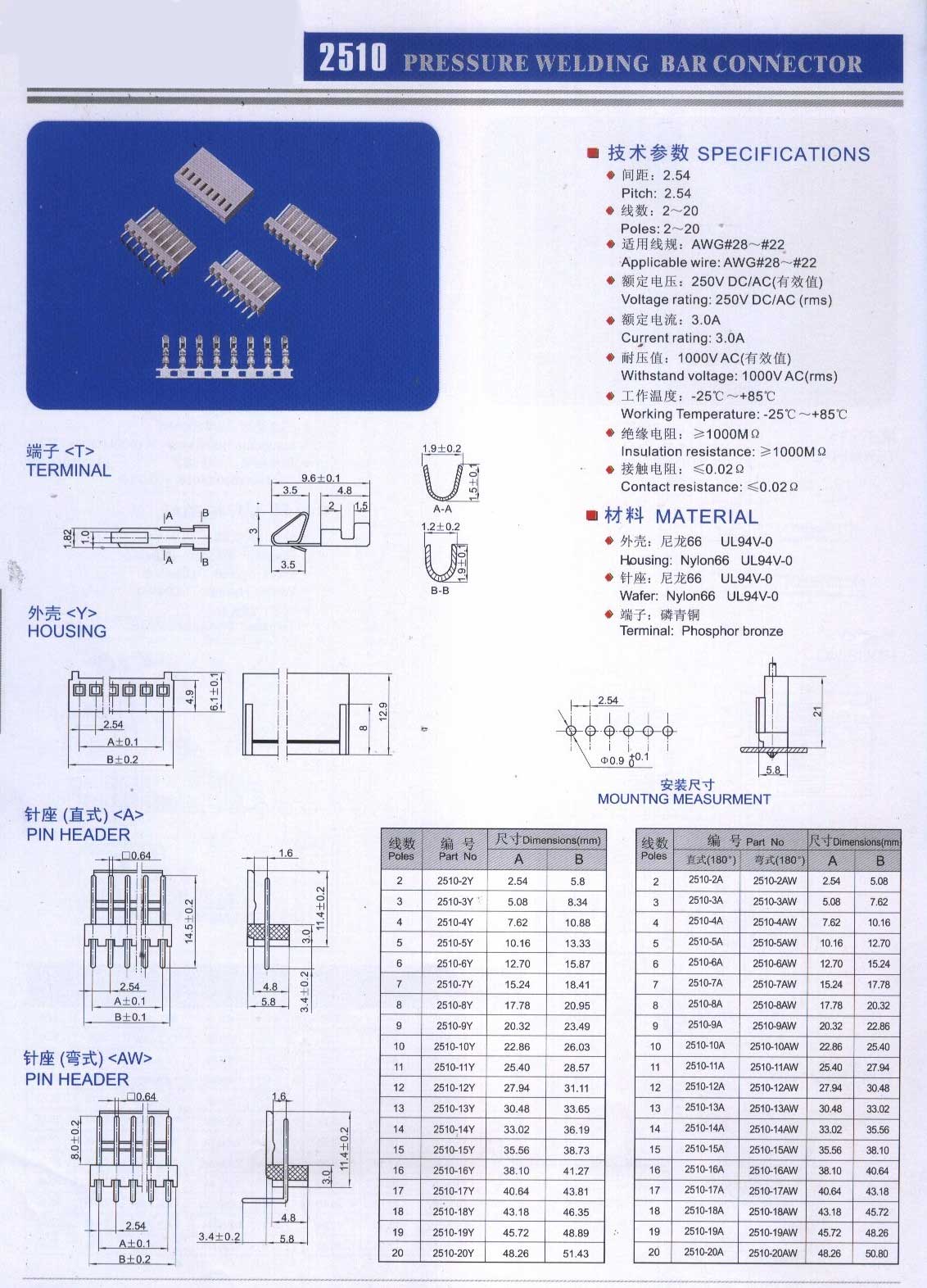

4、SPECIFICATIONS 2510 Housing

Pitch:2.54

Poles:2>20

Applicable wire:AWG#28-#22

Voltage rating:250V DC/AC(rms)

Current rating: 3.0A

Withstand voltage: 1000VAC(rms)

Working Temperature:-25℃-+85℃

Insulation resistance:≥1000MΩ

Contact resistance:≤0.02 Ω

wire-to-board connecting cable
