A2545 (EI) Computer Connecting Cable

A2545 (EI) Computer Connecting Cable

Product Details

The A2545 (EI) Computer Connecting Cable is manufactured by a professional manufacturer with OEM and ODM service capabilities. It can customize product colors and designs according to customer requirements.

1、Basic Product Specifications

• Wire Type: Wire types within the 24 - 30AWG range are available for selection, and customization of special specifications is also supported. The customization process strictly adheres to electrical standards and undergoes professional testing to ensure that different electrical performance requirements are met and the product can operate stably in various complex electrical environments.
• Plastic Housing: The default plastic housing is A2545(EI). If customers need to replace it with plastic housings of other brands, we provide professional adaptation technical support to ensure the overall compatibility of the new plastic housing with the product and guarantee stable and reliable connections.
• Dimensions: The product is precisely manufactured according to customer requirements. High - precision equipment and advanced processes are used, and strict inspections are carried out to ensure that the product dimensions match the equipment perfectly.

2、Materials and Process

• Materials: All materials meet ROHS environmental protection standards and UL standards, ensuring product quality from the source and guaranteeing stable performance, safety, and non - toxicity.
• Process: First, the wire is precisely stripped by machine to ensure the quality of the wire. Then, the terminals are precisely crimped, and finally, the plastic housing is installed and welded manually. The quality of each process is strictly controlled to ensure stable and reliable product performance.

3、Wide Range of Applications

It is widely used in displays, cameras, sensors, and various industrial equipment, meeting the connection needs of different scenarios and providing reliable connection support for the stable operation of equipment.

4、Perfect Service Guarantee

The delivery date of customized products is determined through negotiation to fully cooperate with the customer's project schedule. The packaging usually adopts the method of bundling with cable ties and wrapping with bubble paper, and can also be customized according to customer requirements. There are various transportation methods, including international express, sea freight, and air freight, and customers can choose according to their needs. The minimum order quantity is negotiated based on product customization, providing flexible cooperation options.

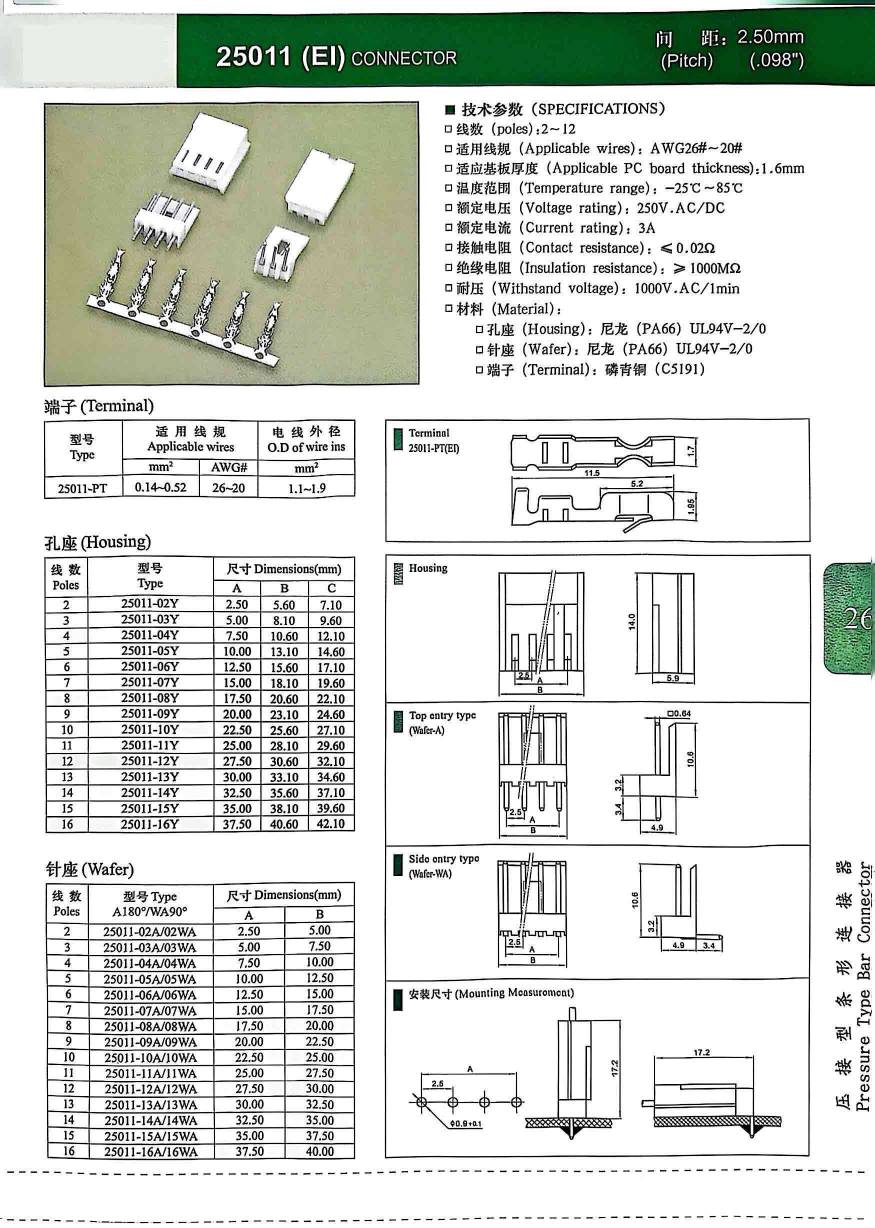

5、SPECIFICATIONS EI Housing

poles:2~12

Applicable wires:AWG26#~20#

Applicable PC board thickness:1.6mm

Temperature range:-25℃~85℃

Voltage rating:250V.AC/DC

Current rating:3A

Contact resistance:≤0.02Ω

Insulation resistance:≥1000MΩ

Withstand voltage:1000V.AC/1min
