A3501 wire-to-board connecting cable

Product Details

The A3501 wire-to-board connecting cable is produced by a professional manufacturer with OEM and ODM service capabilities. It can customize product colors and designs according to customer requirements.

1、Basic Product Specifications

Wire Type: Wire types within the 18 - 24AWG range are available for selection, and customization of special specifications is also supported. The customization process strictly adheres to electrical standards and undergoes professional testing to ensure that different electrical performance requirements are met and the product can adapt to various complex electrical environments.
Plastic Housing: The default plastic housing is A3962(5195). If customers need to replace it with plastic housings of other brands, we provide professional adaptation technical support to ensure the overall compatibility of the new plastic housing with the product and guarantee stable and reliable connections.
Dimensions: The product is precisely manufactured according to customer requirements. High - precision equipment and advanced processes are used, and strict inspections are carried out to ensure that the dimensions match the equipment accurately.

2、Materials and Process

Materials: All materials meet ROHS environmental protection standards and UL standards, ensuring product quality from the source and guaranteeing stable performance, safety, and non - toxicity.
Process: First, the wire is precisely stripped by machine to ensure the quality of the wire. Then, the terminals are precisely crimped, and finally, the plastic housing is installed and welded manually. The quality of each process is strictly controlled to ensure stable product performance.

3、Wide Range of Applications

It is widely used in displays, cameras, sensors, and various industrial equipment, meeting the connection needs of different scenarios and providing reliable connection support for the stable operation of equipment.

4、Perfect Service Guarantee

The delivery date of customized products is determined through negotiation to fully cooperate with the customer's project schedule. The packaging usually adopts the method of bundling with cable ties and wrapping with bubble paper, and can also be customized according to customer requirements. There are various transportation methods, including international express, sea freight, and air freight, and customers can choose according to their needs. The minimum order quantity is negotiated based on product customization, providing flexible cooperation options.

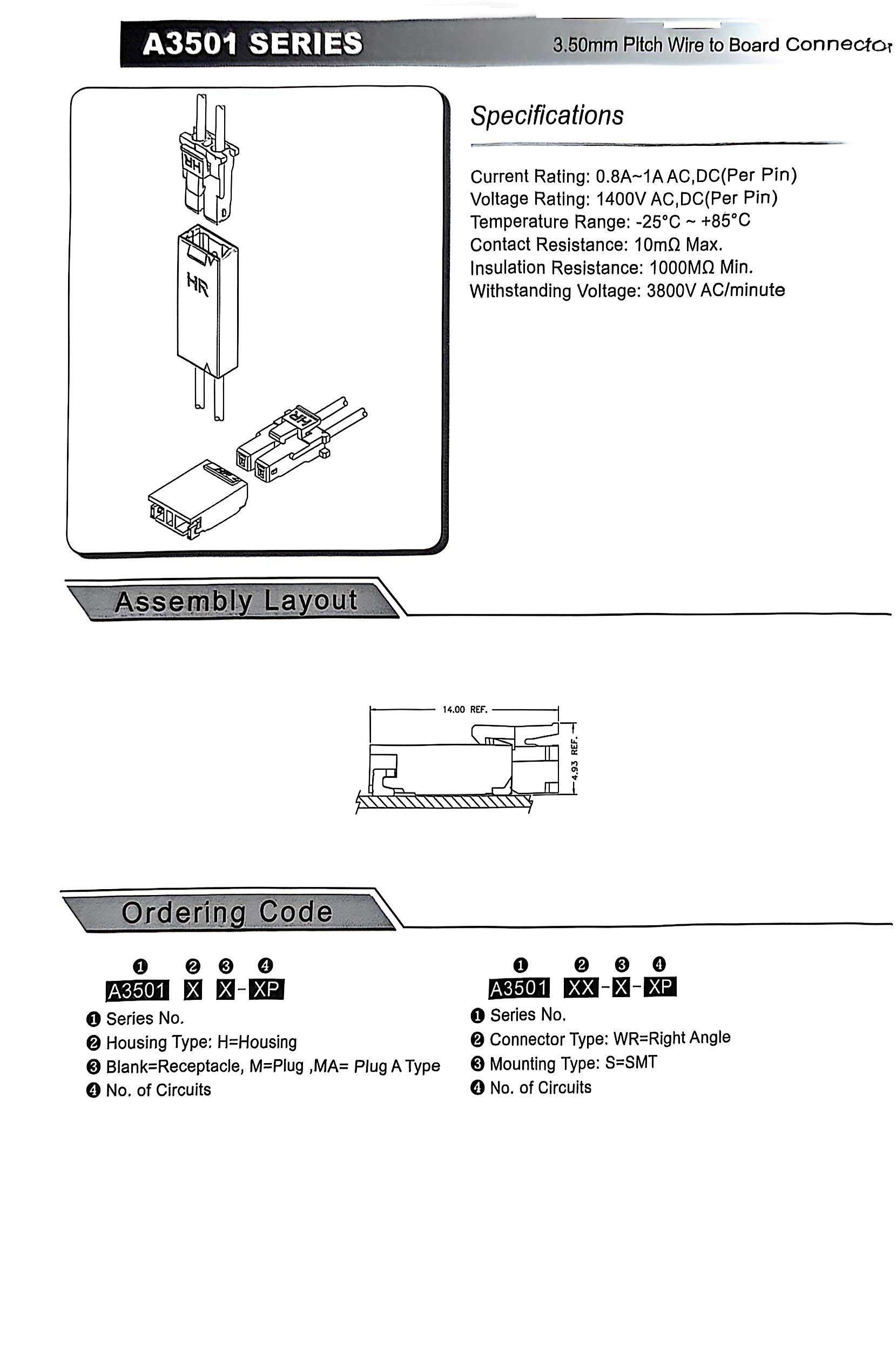

5、Specifications A3501 Housing

Current Rating:0.8A~1AAC.DC(Per Pin)

Voltage Rating:1400V AC,DC(Per Pin)

Temperature Range:-25°C~+85°C

Contact Resistance: 10mΩ Max.

Insulation Resistance: 1000MΩ Min.

Withstanding Voltage: 3800V AC/minute

wire-to-board connecting cable
